Dimensions: L x W x H 690 x 2210 x 1585 mm
Bucket width: 290 mm
Bucket capacity: 0,011 m³
Digging force of the arm: 4,2 kN (485 kg)
Digging force of the bucket: 8,8 kN (815 kg)
Speed: 1,7 km/h
Ground contact pressure: 26,5 kPa (0,27 kg/cm³)
Swivelling speed: 7,5 min-1
Rotation range: 360°
Power output: 306 cc / 8,5 HP / 6,3 kW
Working weight: 562 kg

Ideal for private use, not for commercial.
Mini excavator with an operating weight of 562 kg and compact design for a range of excavation work.
Ideal for private use not commercial.
High-performance 8.5 horsepower/6.3 kW 4-stroke petrol engine, 306 cc
Rotation speed of the excavator: 9.3 rpm / Rotation range: 360°
Swivelling range of the boom: +/- 70°
Digging force of the boom: 4.2 kN / Digging force of the bucket: 8.8 kN
Loading height: max. 1,350 mm / Discharge height: max. 2,100 mm / Digging depth: max. 1,200 mm/ Reach: max. 2,330 mm
690 mm track width – ideal for narrow passages and for reaching areas that are difficult to access
Large levelling blade that can be lowered to support the boom or to move soil
Chain drive: Rubber tracks with a width of 150 mm, can be individually controlledSpeed max. 1.7 km/h

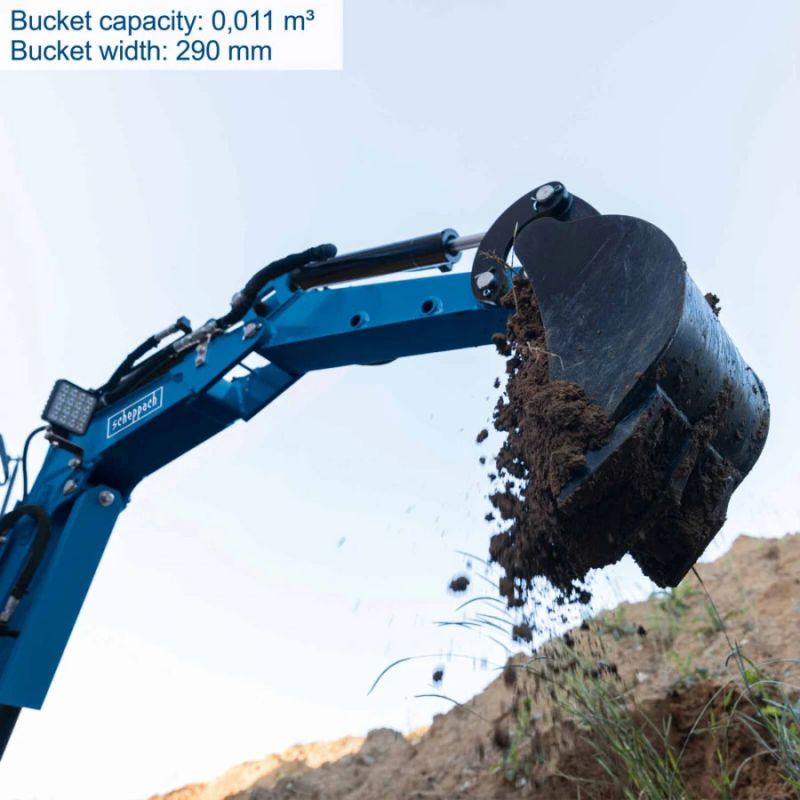

Equipped as standard with a 290 mm wide bucket with 0.011 m³ capacity
E-starter for easy start-up of the excavator

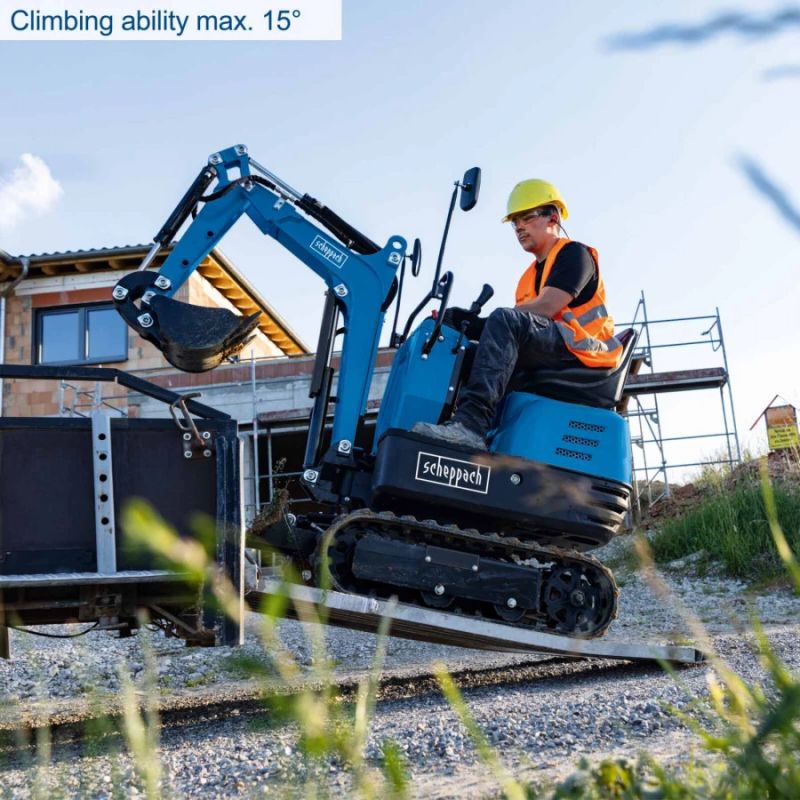

Climbing ability max. 15°

Scheppach statybos įranga skirta reikliems mėgėjams.
